PSA-01P-NPT1/8 Autonics Sensor, Pressure, Standard Pressure, 3 1/2 Digit LED, 0 to 100.0 kPa, 2 PNP/1-5 VDC, Replace by PSAN-D01CPV-NPT1/8

PSA-01P-NPT1/8 Autonics Sensor, Pressure, Standard Pressure, 3 1/2 Digit LED, 0 to 100.0 kPa, 2 PNP/1-5 VDC

 PSA-01P-NPT1/8 Replace by PSAN-D01CPV-NPT1/8

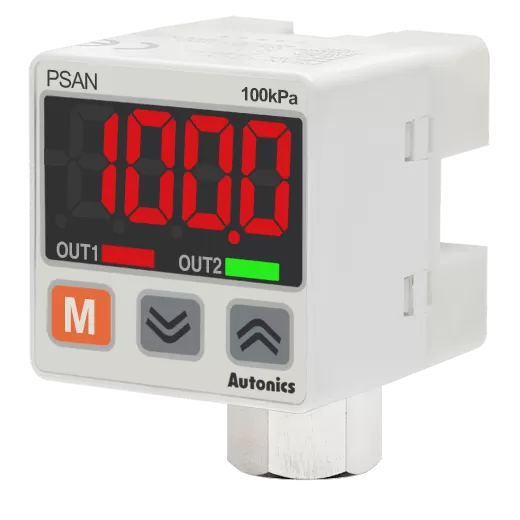

The Autonics PSAN-D01CPV-NPT1/8 is a compact digital pressure sensor designed for monitoring and controlling air and non-corrosive gases in pneumatic and industrial automation systems. It measures standard positive pressure from 0.0 to 100.0 kPa and provides both a PNP open-collector switching output and a 1–5 VDC analog voltage output.

Key Features:

• Pressure range: 0.0–100.0 kPa
• Pressure type: Standard / positive pressure
• Media: Air and non-corrosive gas
• Control output: PNP open collector
• Analog output: 1–5 VDC
• Supply voltage: 12–24 VDC ±10%
• Pressure connection: NPT 1/8
• Port orientation: Bottom fitting
• Electrical connection: Connector type
• Selectable response time: 2.5 / 5 / 100 / 500 / 1000 ms
• Repeatability: ±0.2% F.S. ±1 display unit
• Protection rating: IP40
